佰利乐 分类：初效空气过滤器
佰利乐 描述：
佰利乐0755-28660302

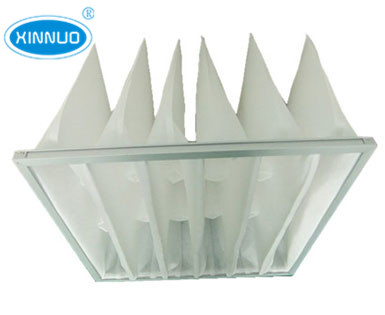

初效袋式空气过滤器
佰利乐 Air filter bag filter early effect
特点Features
●可重复使用多次
●阻力小、风量大
佰利乐●广泛运用于空调系统的中级过滤
●Adopts reusable times
佰利乐●Responding to small resistance, air
佰利乐●Widely used in air conditioning system
佰利乐of intermediate filtration
构成材料及运行条件
佰利乐Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：白色
佰利乐●Liao color: white
●密封条：醋酸乙酯
●Gasket：EVA
佰利乐●使用最高温度、湿度：80℃、80%
佰利乐●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
型号 model | 外形尺寸 Outside Dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（级别） Efficiency (class) | 滤料颜色 Liao color | 袋数 pockets |
XN-15J | 495×295×500mm 20″×12″×20″ | 佰利乐 1500m3/h | 佰利乐 25~35Pa 佰利乐 | 25-35% G3
35-45% G4 | White | 5 |
佰利乐 XN-25J | 495×495×500mm 20″×20″×20″ | 2500m3/h | 5 | |||
XN-20J | 595×295×500mm 24″×12″×20″ | 2000m3/h | 6 | |||
XN-32J | 595×495×500mm 24″×20″×20″ | 3200m3/h | 6 | |||
佰利乐 XN-38J | 595×595×500mm 24″×24″×20″ | 3800m3/h | 8 | |||
XN-18J | 495×295×600mm 20″×12″×24″ | 1800m3/h | 5 | |||
XN-32J | 495×495×600mm 20″×20″×24″ | 3200m3/h | 5 | |||
XN-25J | 595×295×600mm 24″×12″×24″ | 2500m3/h | 6 | |||
佰利乐 XN-40J | 595×495×600mm 24″×20″×24″ | 4000m3/h | 6 | |||
XN-45J | 595×595×600mm 24″×24″×24″ | 4500m3/h | 8 |
