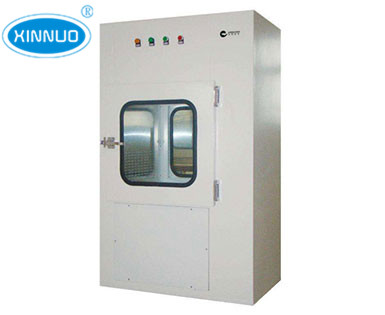

风淋式传递窗
The wind drench type transmission Windows
佰利乐产品介绍 Product introduction
风淋室传递窗是具有闸门与门锁的双重作用，被传递的物品
必须经过风淋后才能进入洁净室，所以能有效地防止传递的物
品将灰尘或细菌带入洁净室。
Air shower transmission Windows is a gate lock and the dual
佰利乐role, is passed Items must be after the cleanroom can enter
after, so can effectively To prevent transmission of the item will dust or bacteria into the clean room.
佰利乐构成材料：Constitute the materials
●外框：不锈钢或冷板喷塑处理
●Outer frame of cooling-plate pensu processing: stainless steel or
●内胆：不锈钢
佰利乐●Tank: stainless steel
●采用粗效、高效两级过滤系统
●Using rough effect, efficient filter system
佰利乐●风机：低振动、低噪音进口或国产风机
佰利乐●Fan: low vibration, low noise, imported or domestically fan
型号尺寸及其他参数
Standard specification
规格型号 Specifications | 佰利乐 XN-C1 | XN-C2 |
外形尺寸（L×W×H）mm Shape dimension | 佰利乐 950×680×1550 | 1120×840×1680 |
内部尺寸（L×W×H）mm Internal dimensions | 佰利乐 600×600×600 | 佰利乐 800×800×800 |
喷嘴数量及风速 Nozzle number and speed | 4、18~22 m/s | 5、18~22 m/s |
电源及功率 Power supply and power | 380V、50HZ、0.75KW | 380V、50HZ、1.1KW |
