佰利乐 分类：高效送风口
佰利乐 描述：
0755-28660302

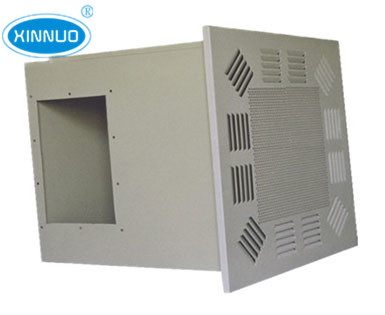

高效送风口
Efficient air diffuser
佰利乐特点：Features
●外形美观、结构简单
●带调节阀可调节风量
佰利乐●适用于有隔板高效空气过滤器
佰利乐●Appearance, simple structure
佰利乐●With adjustable air regulator
佰利乐●Applicable to hepa filter
构成材料及运行条件
Materials and operating conditions
●框材：冷扎钢板喷塑
●External frane：Lengzha steel spray
●风量调节：手动调节阀
●Operation: manual regulator
佰利乐●过滤器：有隔板高效空气过滤器
●Hepa filter: air filter
佰利乐●使用最高温度、湿度：80℃、80%
佰利乐●Use the highest temperature, humidity：80℃、80%
佰利乐型号尺寸及其他参数(Standard specification)
侧面进风Lateral into wind | 顶部进风Top into the wind | 外形尺寸(mm)Shape dimension L×W×H | 过滤器尺寸(mm)Filter size L×W×H | 风量air (m3/h) | 进风官尺寸(mm)Into the official size A×B | 风管连接(mm)Duct connection C×D | 装配尺寸(mm)Assembly size T×S×R×G | 吊环间(mm)Rings spacing距 |
XN-5J | XN-DF-5J | 370×370×530 | 320×320×220 | 500 | 200×200 | 250×250 | 438×438×294×294 | 344×344 |
XN-10J1 | XN-DF-10J1 | 534×534×530 | 484×484×220 | 1000 | 200×200 | 370×250 | 588×588×294×294 | 508×508 |
XN-10J2 | XN-DF-10J2 | 660×660×460 | 610×610×150 | 1000 | 320×250 | 370×300 | 716×716×358×358 | 634×634 |
XN-16J | XN-DF-16J | 680×680×530 | 630×630×220 | 1600 | 320×250 | 370×300 | 736×736×368×368 | 654×654 |
