分类：中效空气过滤器
描述：
佰利乐0755-28660302

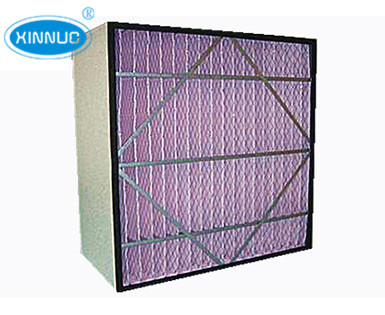

中效箱式空气过滤器
佰利乐Effect of air filter box
特点：Features
●使用寿命长
●阻力小、风量较大
●容尘量大
●广泛运用于空调系统的中级过滤
佰利乐●Long service life
佰利乐●Small resistance, air is bigger
佰利乐●Let the dust
●Widely used in air conditioning system
adopts the intermediate filtration
构成材料及运行条件
佰利乐Materials and operating conditions
佰利乐●框材：铝合金或镀锌板外框
佰利乐●External frane：Aluminum alloy steel or frame
●分隔物：塑胶插片
●Space: plastic inserted
●覆网：铝网或镀锌网
●Reply: aluminum or galvanized mesh
●滤料材质：新型复合无纺布
佰利乐●Filter material: new composite nonwoven fabric
●滤料颜色：F5(白色)45%（浅黄色）、F6(绿色)65%（桔红色）、F7(粉红色)85%（紫色）、F8(浅黄色)95%（深黄色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封条：醋酸乙酯
●Gasket：EVA
●密封物：聚胺脂胶
佰利乐●Sealant：Gel-glue
佰利乐●使用最高温度、湿度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
型号 model | 外形尺寸 Outside Dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（级别） Efficiency (class) | 滤料颜色 Liao color | 折数 Fold number |
XN-13 | 495×295×295mm 20″×12″×12″ | 1300m3/h | 佰利乐 50Pa F5
55Pa F6
佰利乐 60Pa F7 佰利乐 65Pa F8 佰利乐 | 佰利乐 40-50% F5
60-70% F6
75-85% F7
85-95% F8 （比色法） colorimetric | 白色F5 佰利乐 White 绿色F6 佰利乐 Green 粉红F7 pink 浅黄F8 yellow | 8 |
XN-22 | 495×495×295mm 20″×20″×12″ | 2200m3/h | 10 | |||
XN-16 | 595×295×295mm 24″×12″×12″ | 1600m3/h | 14 | |||
XN-27 | 595×495×295mm 24″×20″×12″ | 2700m3/h | 14 | |||
XN-32 | 595×595×295mm 24″×24″×12″ | 3200m3/h | 18 |
